- Dimensions: External: 1162mm x 1162mm x 780mm high
Internal: 1090mm x 1080mm x 635mm high
48kg vented - Volume capacity: 750 L
- Access drop gates: Each unit can be specified to have drop gates (860mm wide x 300mm high)
- Fork access height: 95mm x 862mm
- Suitable for temperature: -30 to +40
- 2-way entry: Yes
- Load carrying: Capacity: 550kg
- Static: 3600kg
- Dynamic: 1800kg
- Racking locator recess: 10mm deep (twice on each side)
- Drain holes: Only in vented base
- Bin cover/lid: Optional
- Vented or unvented: Bin can be supplied in the vented or unvented form with vents being 10mm wide x 40mm high
- Label holders: 2 x label holders on each gate being 200mm x 70mm
DOWNLOAD FOLDING MEGABIN USER GUIDE

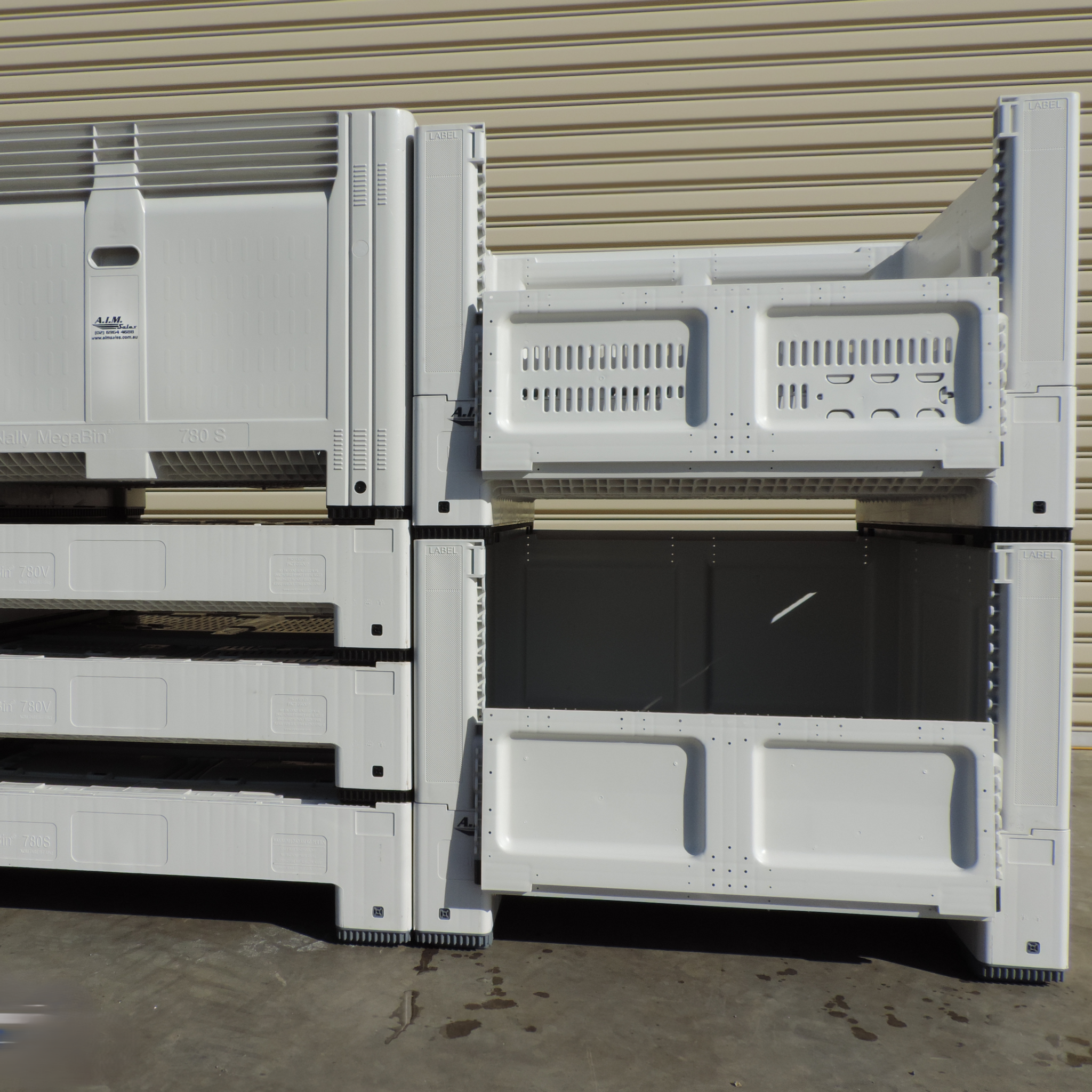

Nally 780 Folding MegaBin
We offer folding bins that maximise your warehouse’s space and efficiency. Ourplastic folding bins deliver the same qualities needed for storing and shipping a wide range of goods Australia wide and internationally. At the same time, these bins provide efficient use of warehouse spaceand economical return freight by collapsing the …
The AIM Folding Bin is a versatile solution for storing and transporting produce, designed to maintain freshness and temperature with efficient airflow.
Key Features:
- Size: 1162mm x 1162mm x 780mm (folds down to 280mm)
- Capacity: 500kg per bin
- Folding ratio: 2.8:1 – stack 7 units in one pallet space at 240cm high
- Material: 100% virgin Polypropylene for durability and impact resistance
- Airflow: Internal rounded vents and free-flowing vented base for quick chilling
- Easy Access: 860mm wide drop-down door for easy loading/unloading
- Entry: 2-way forklift entry for ease of handling
- Standard Australian footprint: Compatible with other rigid pallet bins like Nally Megabins
- Racking Locators on all four sides for easy warehouse racking
- Customisable options: Vented & non-vented models, food-grade quality, 4 label holders, dust cover lid
Perfect for produce storage, transportation, and warehouse organisation, AIM Folding Bins offer the flexibility and reliability your business needs.
